Altos

Altos® is an innovative architectural wall system designed for maximum functionality while maintaining a clean aesthetic. Simple and efficient, Altos facilitates cost-effective reconfiguration or full relocation as required. Its unique universal framework allows changes in elevation, dimension, fascia function and finish to maximize the life of the product.

functional spaces

  • Optimize your environment to get the most out of every surface. Altos Portrait offers an extensive variety of fascia, electrical and acoustic options - all available with Teknion’s comprehensive finishes program.

return on investment

  • Demountable fascias and accessories are easily reconfigured to keep up with the ever-changing needs of the workspace. Altos’ systems approach and extensive leveling range open up possibilities for relocation to new floors or buildings.


quality spaces

  • Altos is built to last and durable. Designed with clean lines to harmonize with building interiors, Altos’ external cladding and internal steel frame are relevant both today and tomorrow.

View more details + gallery online
View Altos Install Best Practices

    • Ceiling heights from 86" - 120" high in 1" increments

    • Fascia widths from 12" - 48" wide in 1" increments

    • Ceiling adjustment range: + 1-1/2 ", - 1-1 /2"

    • Floor adjustment range: + 1-1 /2 ", - 1-1 /2 "

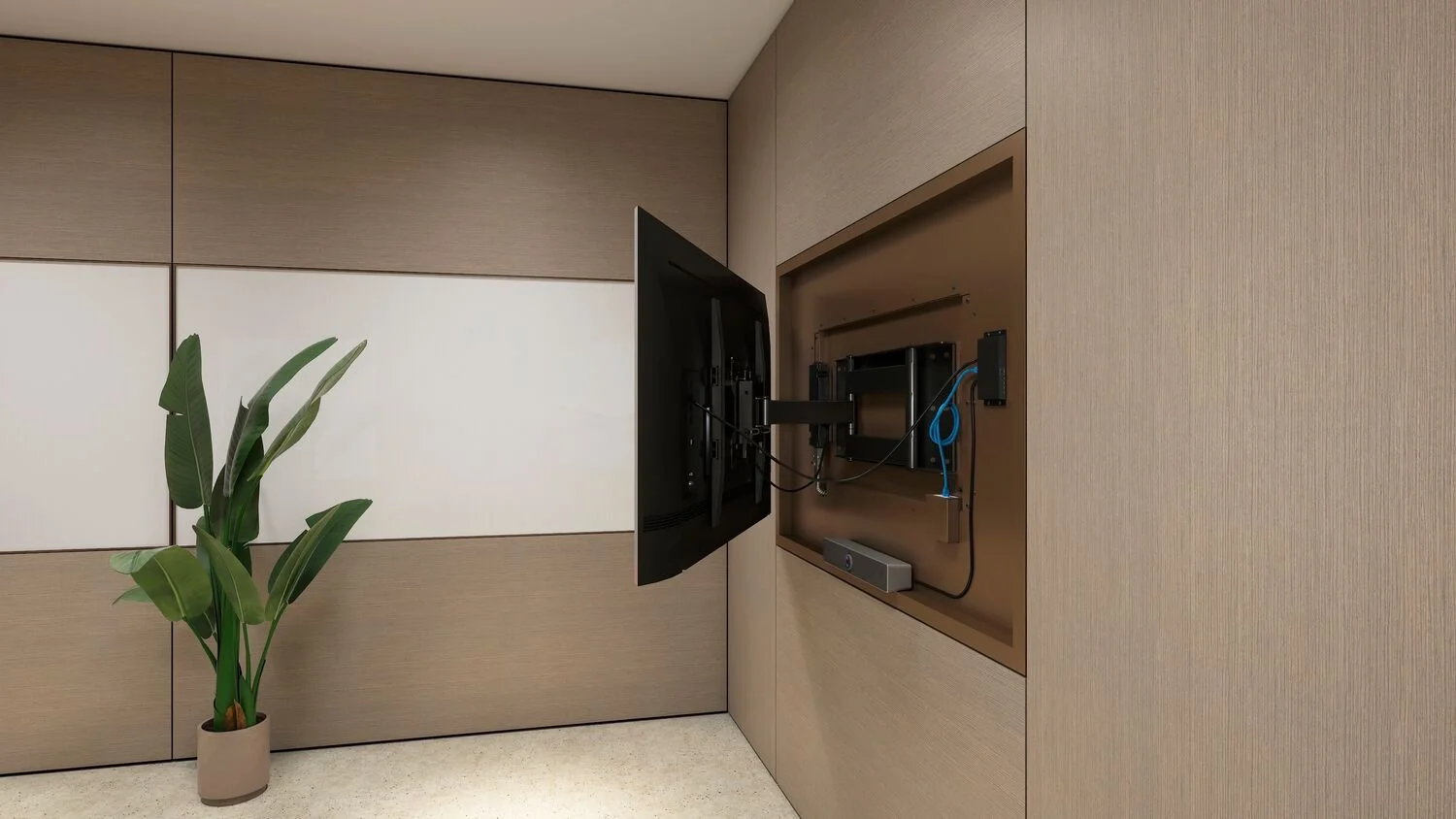

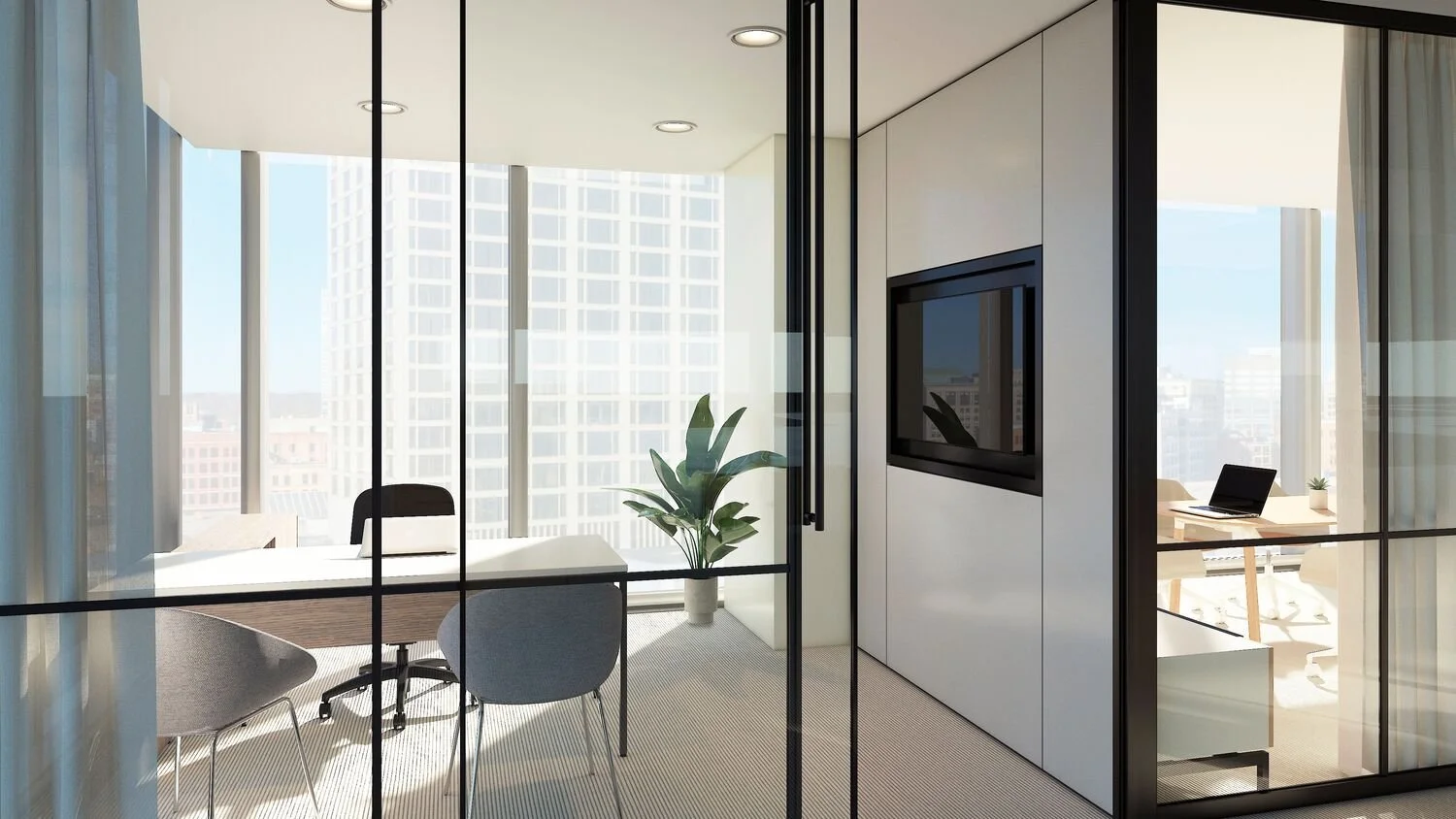

    • Solid, fabric-wrapped, acoustic and acoustic tackable fabric, single and double glass, back painted glass, markerboard, whiteboard, aluminum, Acoustic Metal Micro Perforated, TV Shroud, and accessory mounting fascias

    • Compatible with Teknion’s Architectural finishes program

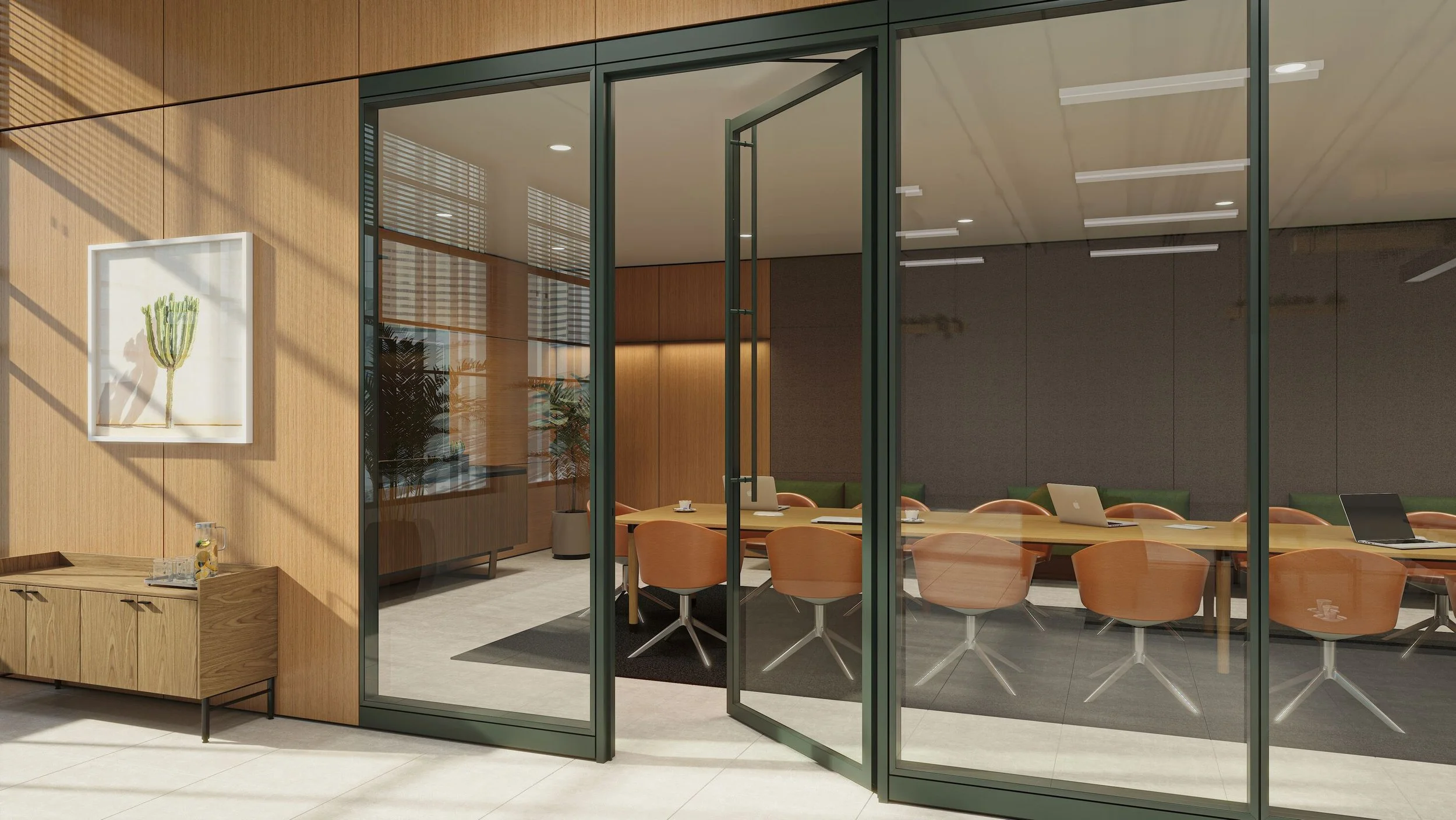

    • Hinged, Pivot and Sliding doors

    • Single and double leaf options available

    • Glass single and double glazed, Solid, Solid with Glass Insert, and Paint Grade Unfinished options

    • Interior and Exterior mounting options available

    • Glass STC ratings up to 46 STC

    • Solid STC ratings up to 48 STC

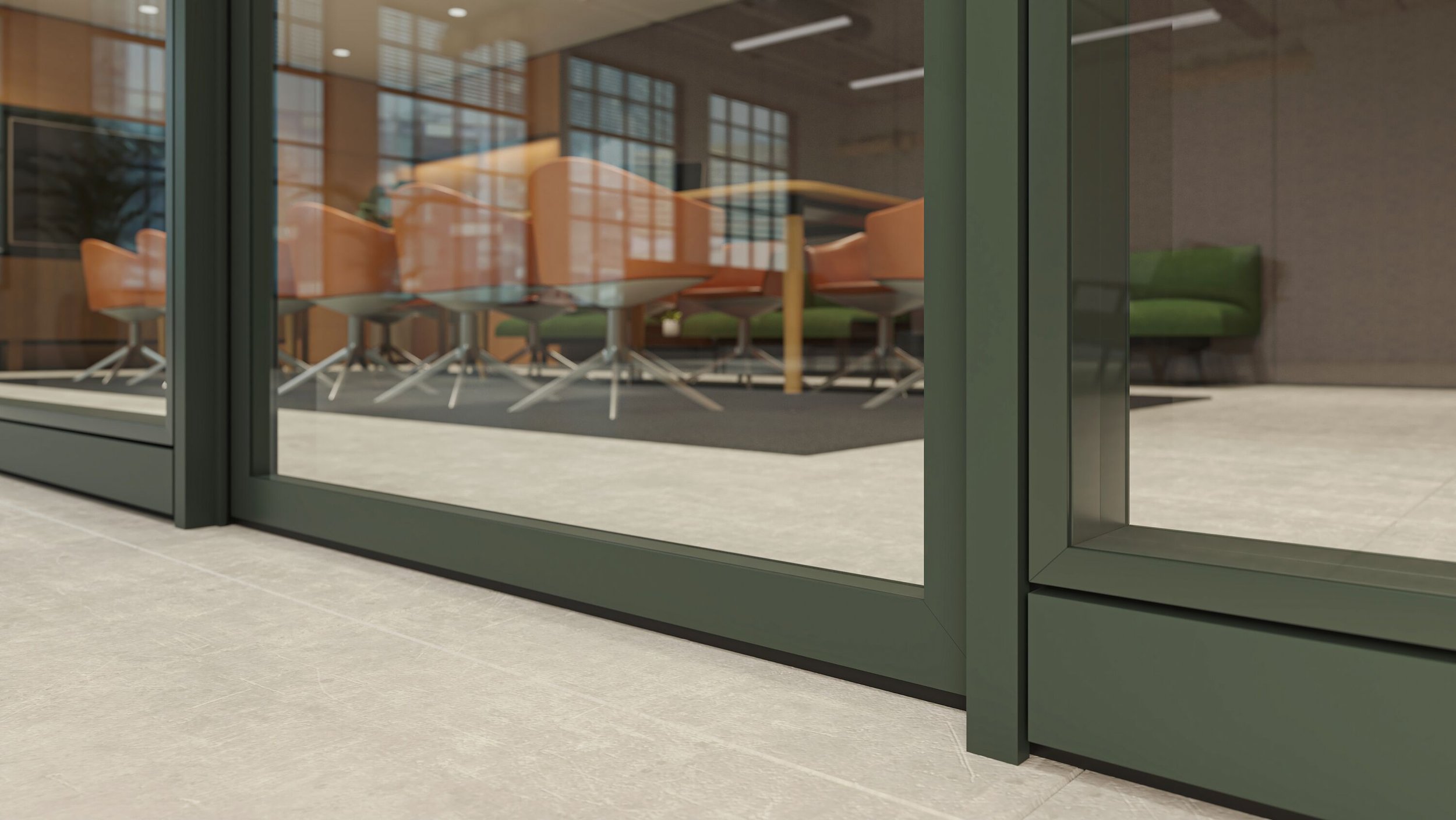

    • Double Glazed Door ratings up to 39 STC

    • NRC ratings up to .85 NRC

    • 6mm framed glass only

    • Tempered and Laminated

    • Clear and Frosted finishes

    • Single and double glass

    • Square and round corner options

    • Drywall/base building

    • Optos, Focus and Tek Vue and Mullions

    • Vertical grain direction

    • Off-the-bolt fabric direction

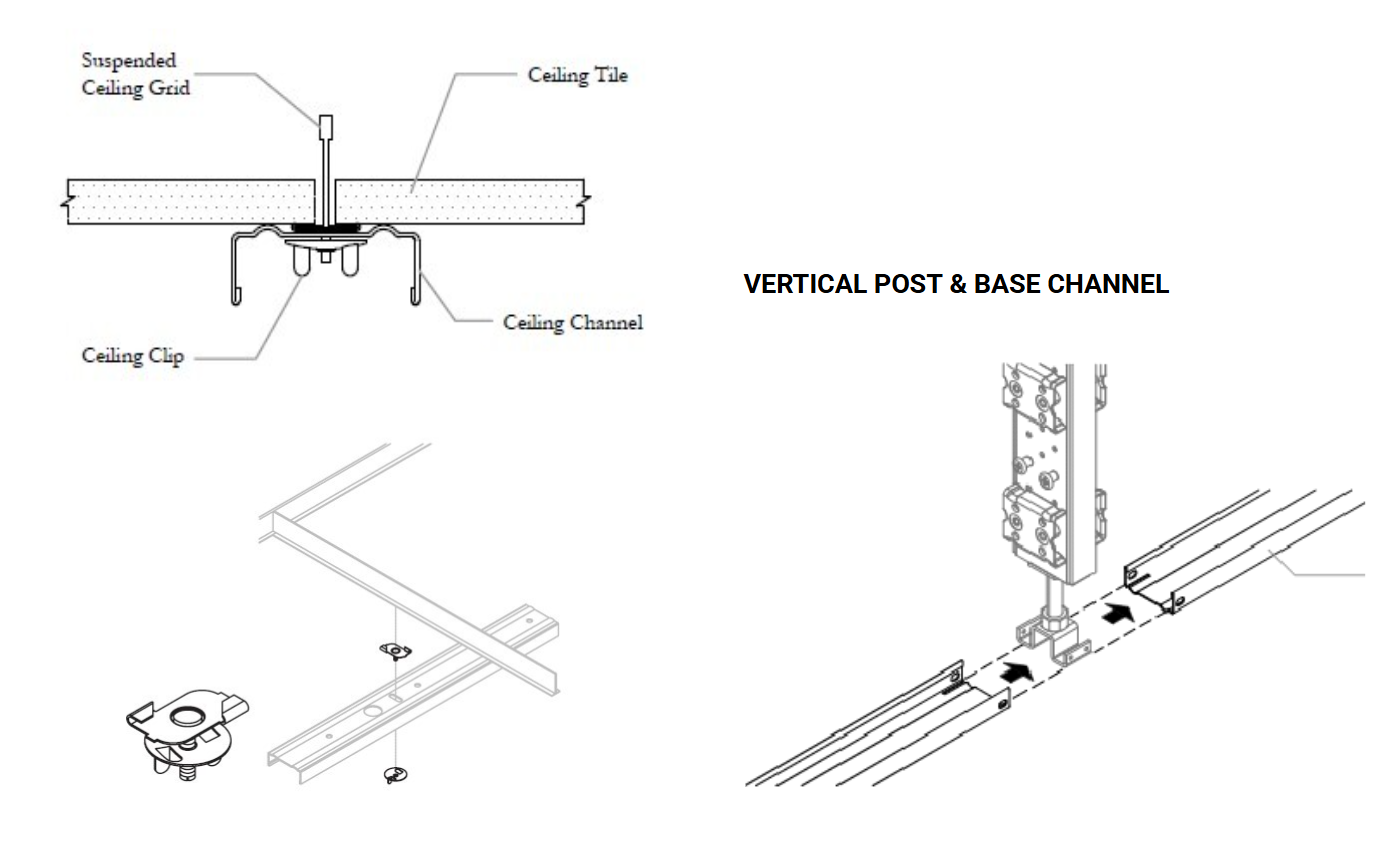

Ceiling and Floor Attachment

  • Ceiling channel attaches to the ceiling and supports the vertical posts

  • The ceiling clip is a non-permanent way to attach ceiling channel to the suspended ceiling

  • Base Channel is the horizontal framework of all wall assemblies

  • Gap tape is provided along the underside of the base channel to add stability and an acoustic barrier without mechanical attachments to the floor

Power + Data Distribution

POWER DATA KEY ATTRIBUTES

  • Aesthetic appeal

  • On site Planning

  • Universal

  • Flexible Daisy-Chaining capabilities

  • Reconfigurable

  • Easy to Install

  • Minimum electrician/installation labor

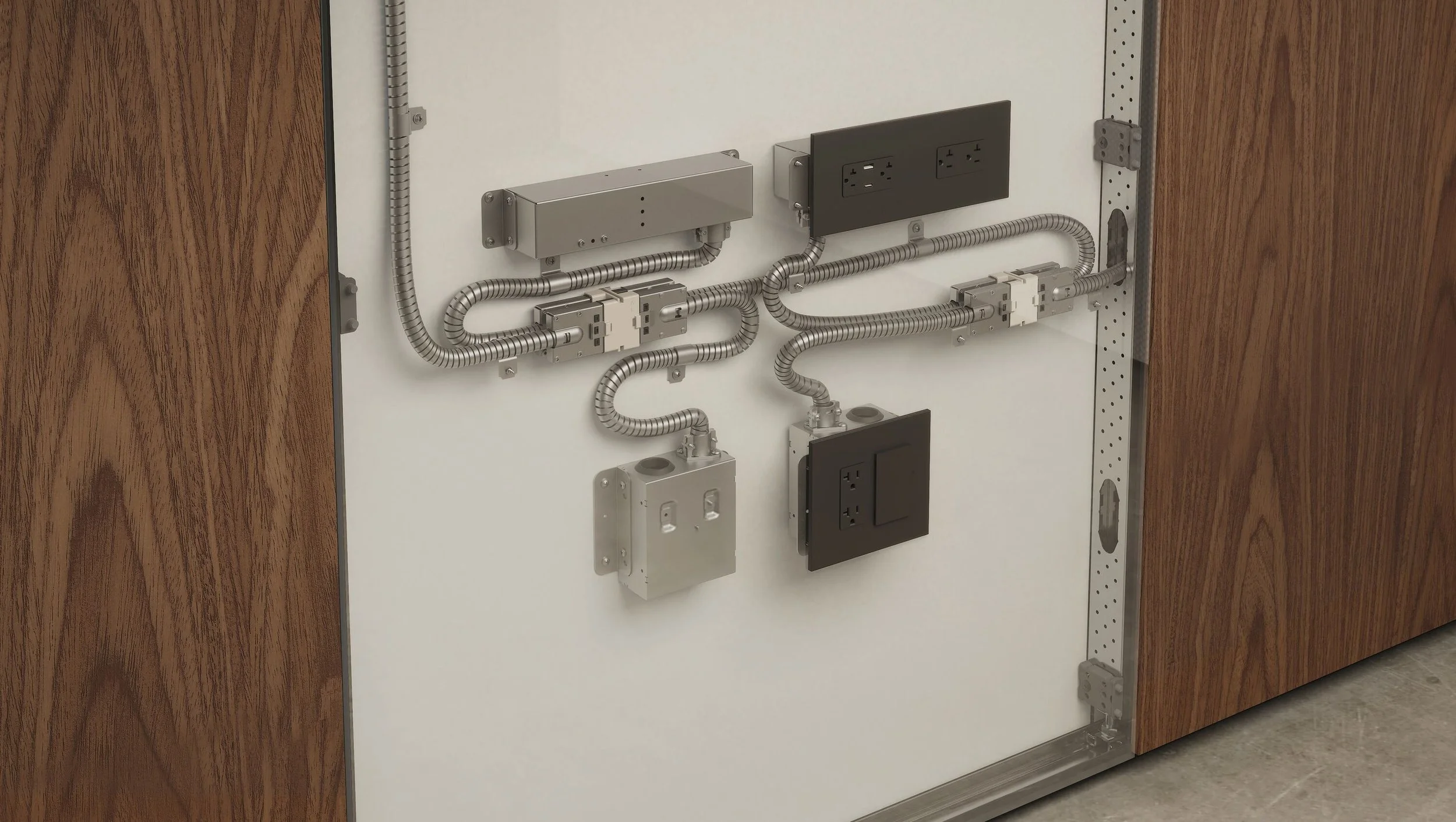

POWER CONNECTIONS

  • Power is provided to Altos walls by a building junction box provided by others

  • The Power Data Starter Cable connects to the building’s junction box by a certified electrician.  Cables are fed from the ceiling or from access floors through cut outs in the ceiling or base channels to the Power Data Modules.

  • Four-Way Splitters connect to the starter cable and allow daisy chaining as well as back to back

  • Power Data Connecting Harness can be specified to link modulus or passing through panels without receptacles

  • Modules can be mounted back to back to provide power to adjacent offices.

  • Reaching other power locations can be accomplished by adding an In-line connector to lengthen the infeed power harness when is end of run, single sided.

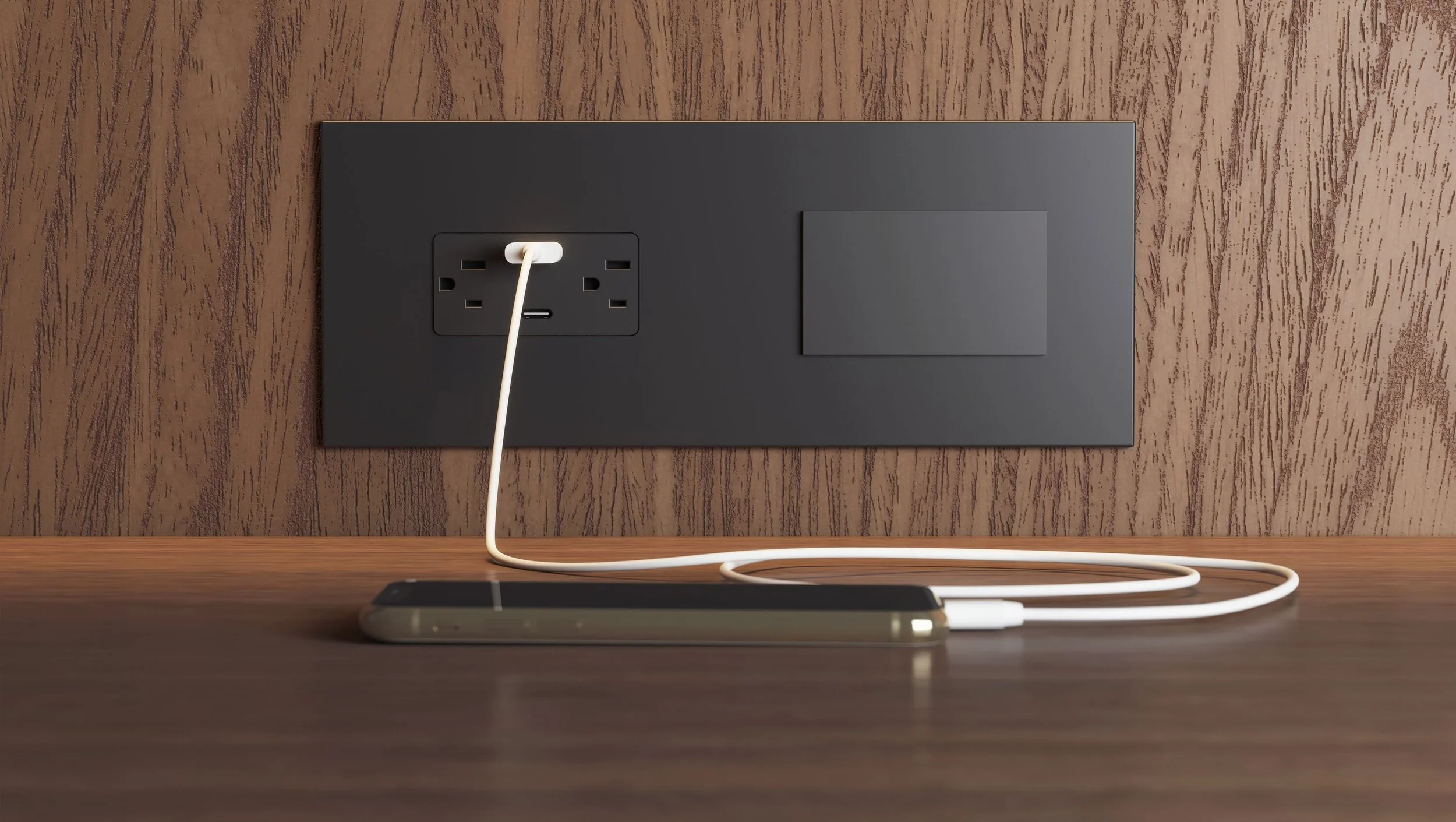

  • Power can be accessed through the use of power modules, which are mounted on Fascia’s at 18” height, or 33”AFF.  That is below or above the worksurface respectively (standard cut out locations).  Power Data Modules are mounted from behind the fascia by fastening to the fascia.

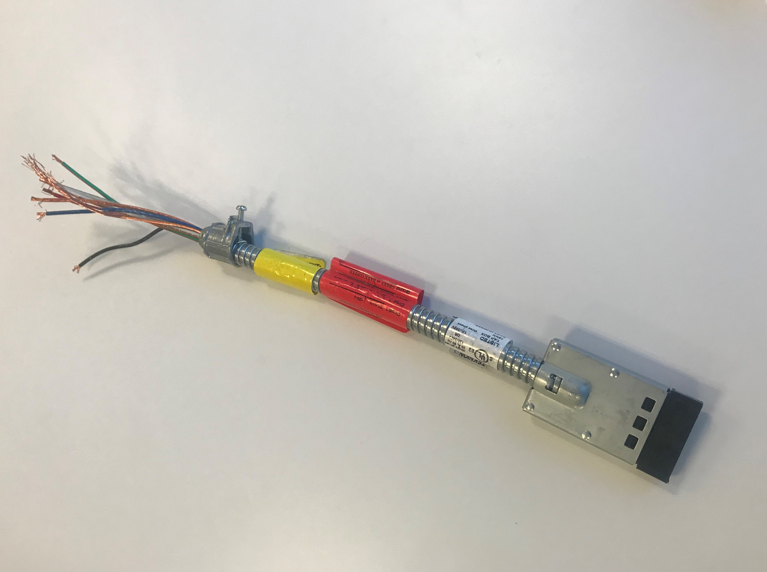

Altos Starter Cable

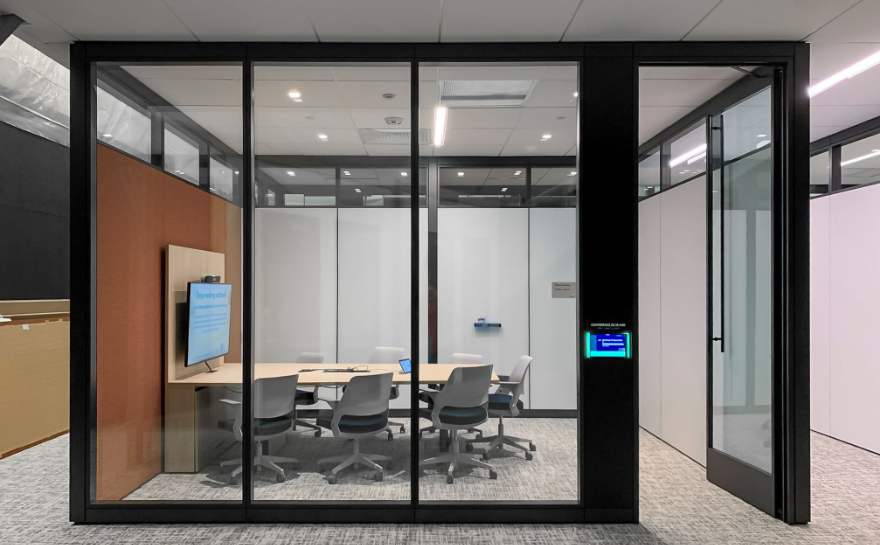

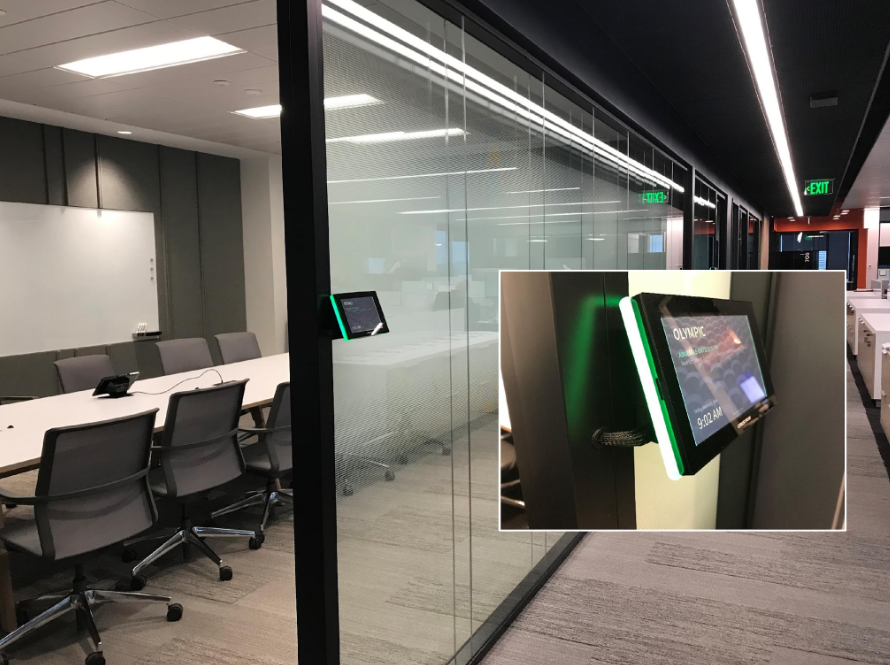

Room Scheduling Integration

Teknion is able to integrate room scheduling devices into any of our glass front architectural wall systems, enhancing both functionality and aesthetics in modern office spaces, and providing a sleek and unobtrusive interface for booking and managing room usage.

TECHNOLOGY PANEL

Teknion provides custom solutions for a clients’ technology needs.   Our Tech Panel can be added to our Altos, Focus, & Optos system to provide locations for mounting light switches, room schedulers, signage and even power.

The exterior fascias can be ordered in laminate, wood veneer or fabric finishes.  The details here show a custom solution for Walmart.

Alternate upcharge shown on pricing sheet include Room Scheduler Mounting Plate, and one power module.
