Tek Vue
Tek Vue is a glass office-front system that responds to the essential needs of today’s workplace. The system focuses on single-center glazing and thin-profile frames, while providing effortless integration with conventional construction and existing Teknion wall programs.
value through simplicity
Tek Vue offers the essential elements; a single-center glass wall program and pared down, yet progressive, pivot and sliding door program. The system is easy to install, uses materials efficiently and offers flexibility in specification.
small footprint, large application

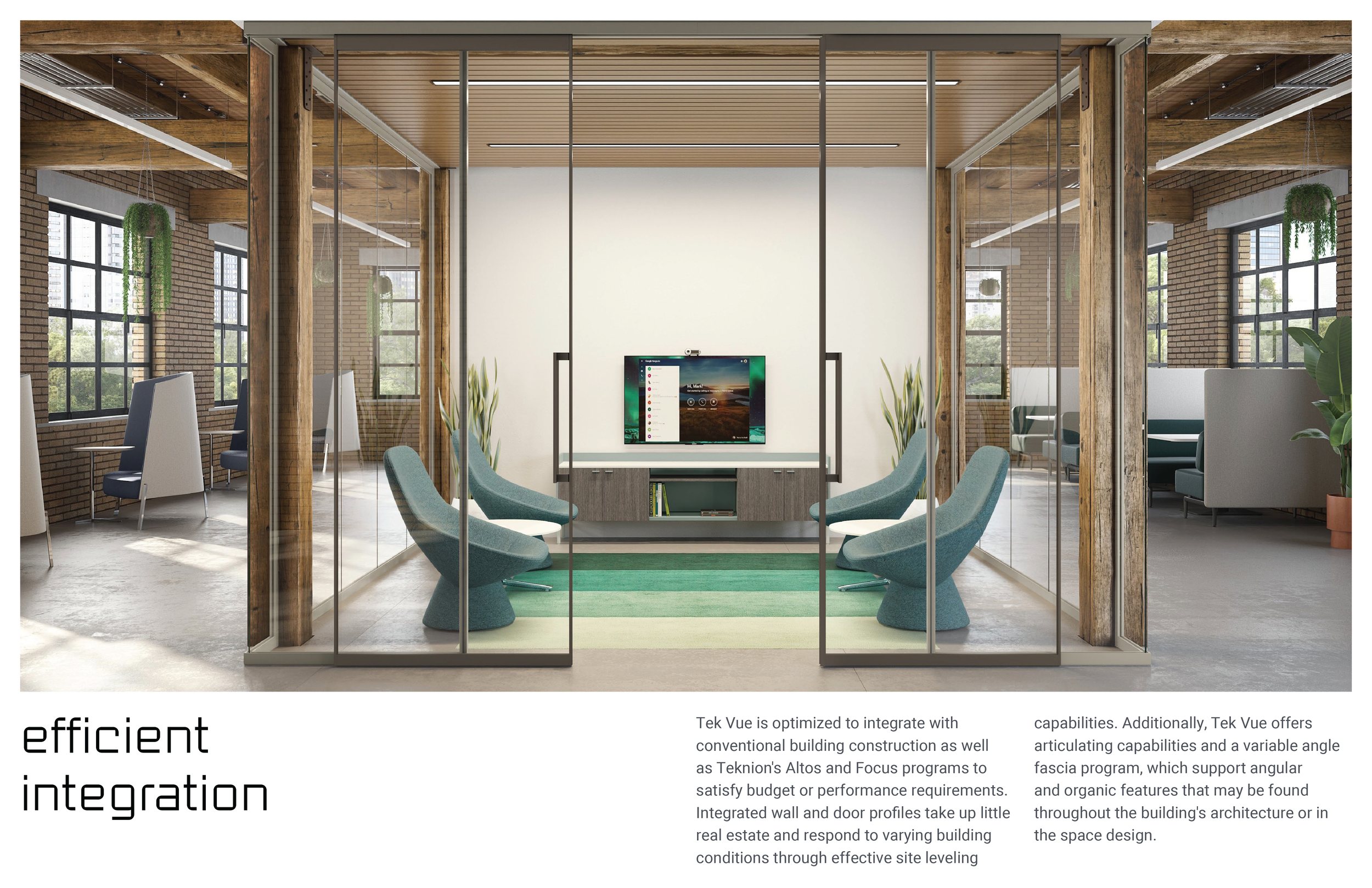

Tek Vue is optimized to integrate with conventional building construction as well as Altos and Focus programs to satisfy budget or performance requirements.

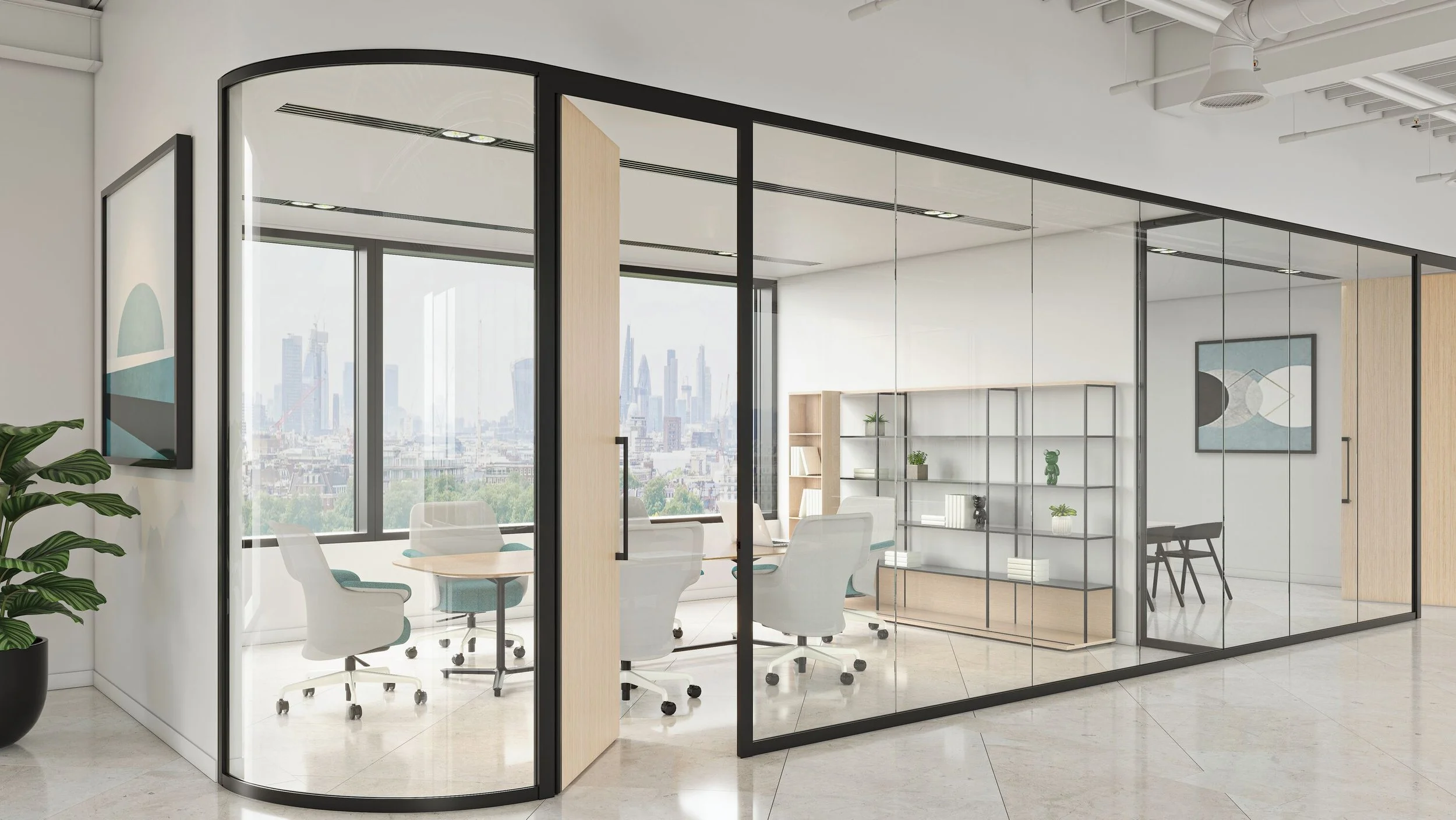

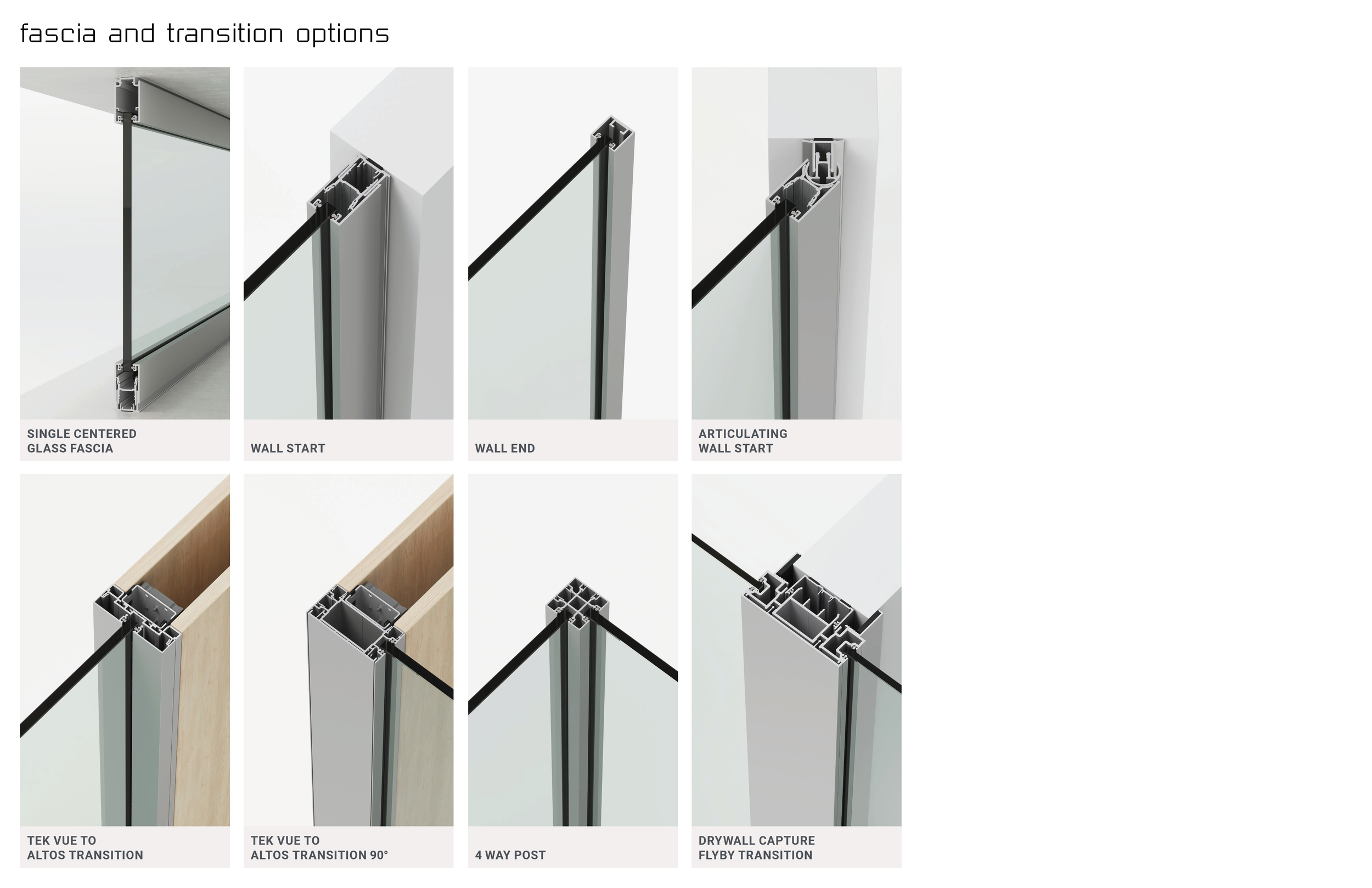

Thin wall and door profiles take up little real estate and respond to varying building conditions through effective site accommodation. Tek Vue also offers a comprehensive articulating and electrical program, as well as variable angle and curved fascia capabilities.
universal platform

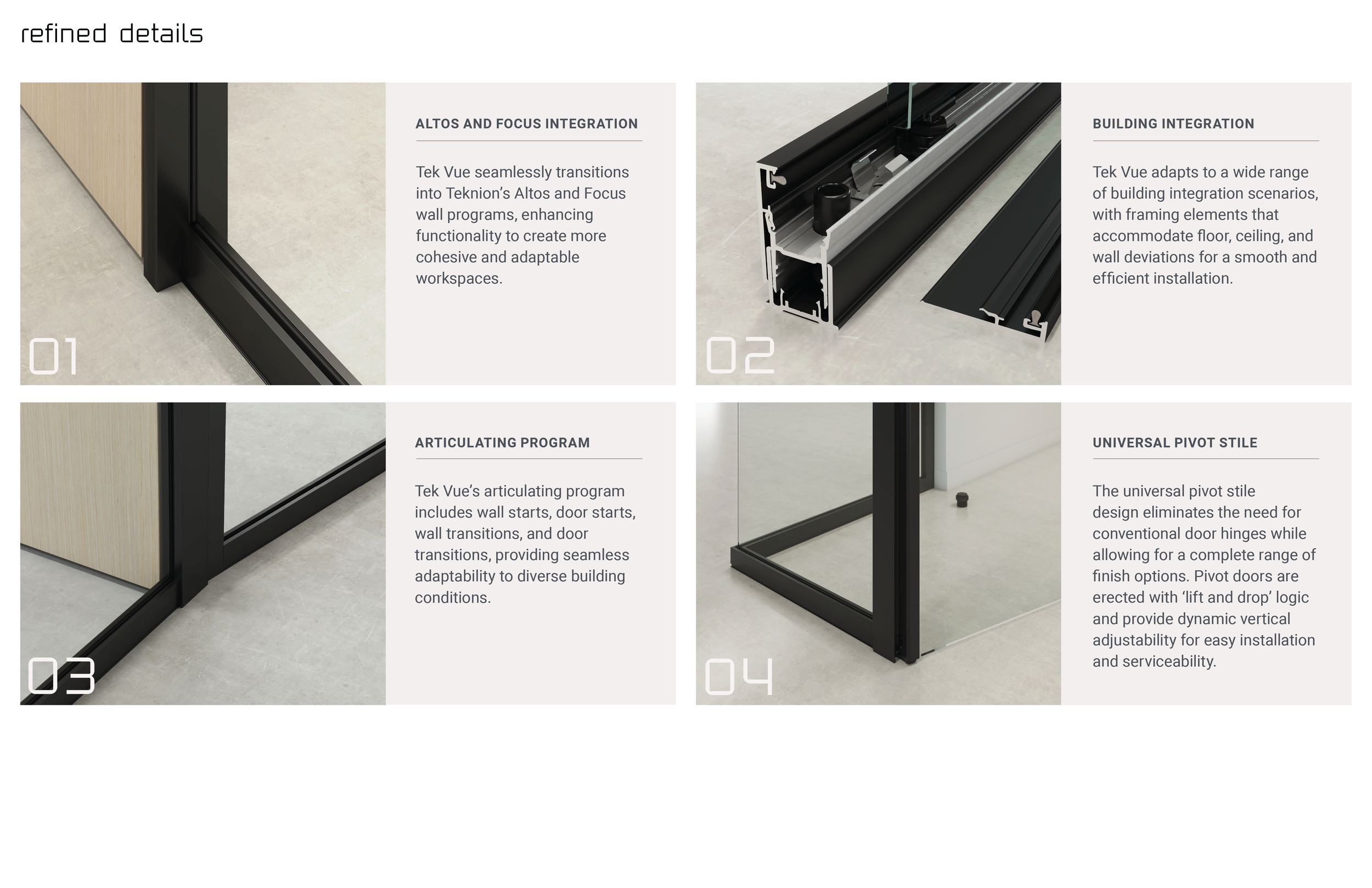

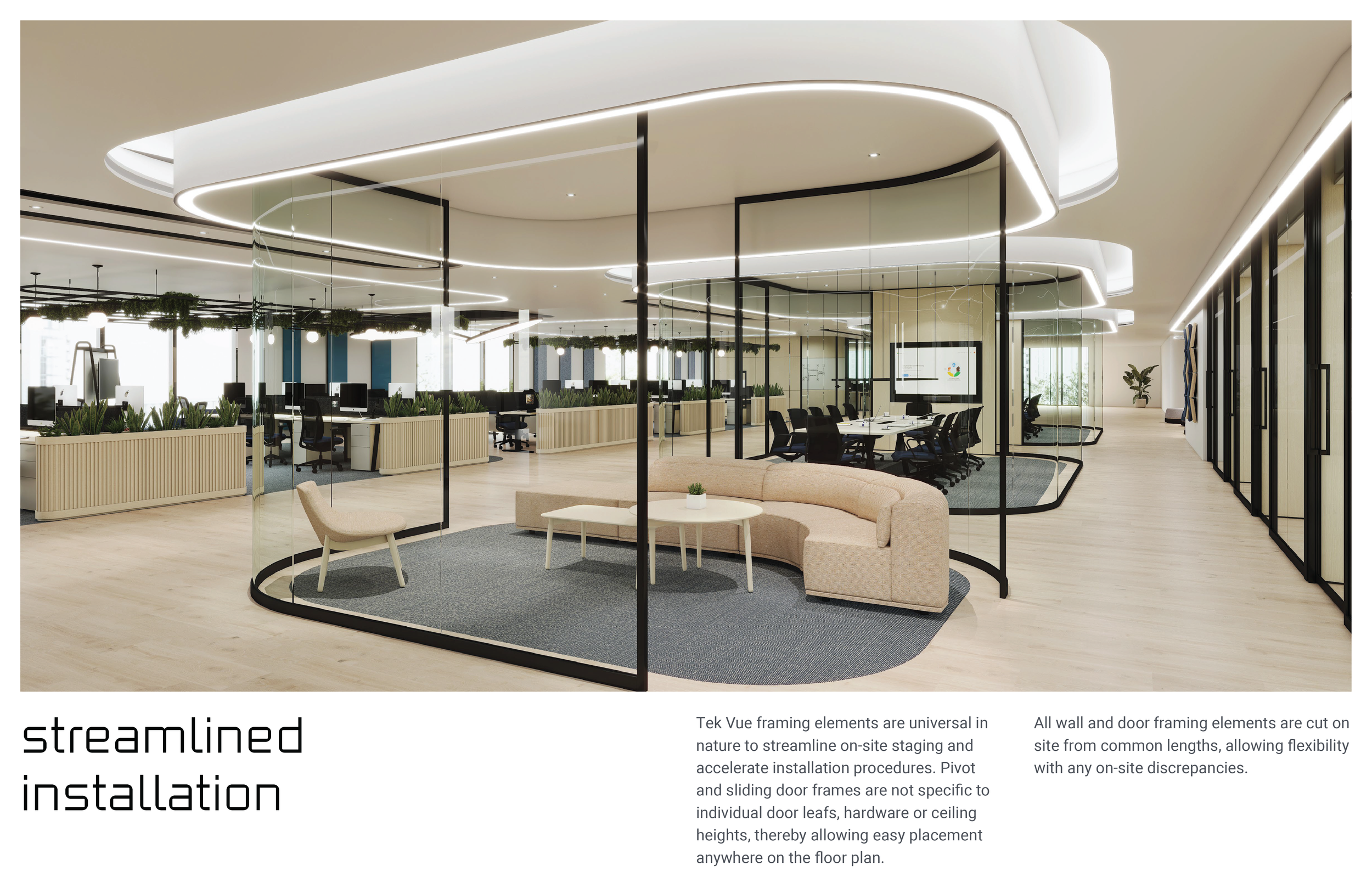

Tek Vue framing elements are universal in nature to streamline on-site staging and accelerate installation procedures.
Pivot and sliding door frames are not specific to individual door leafs, hardware or ceiling heights, thereby allowing easy placement anywhere on the floor-plan.

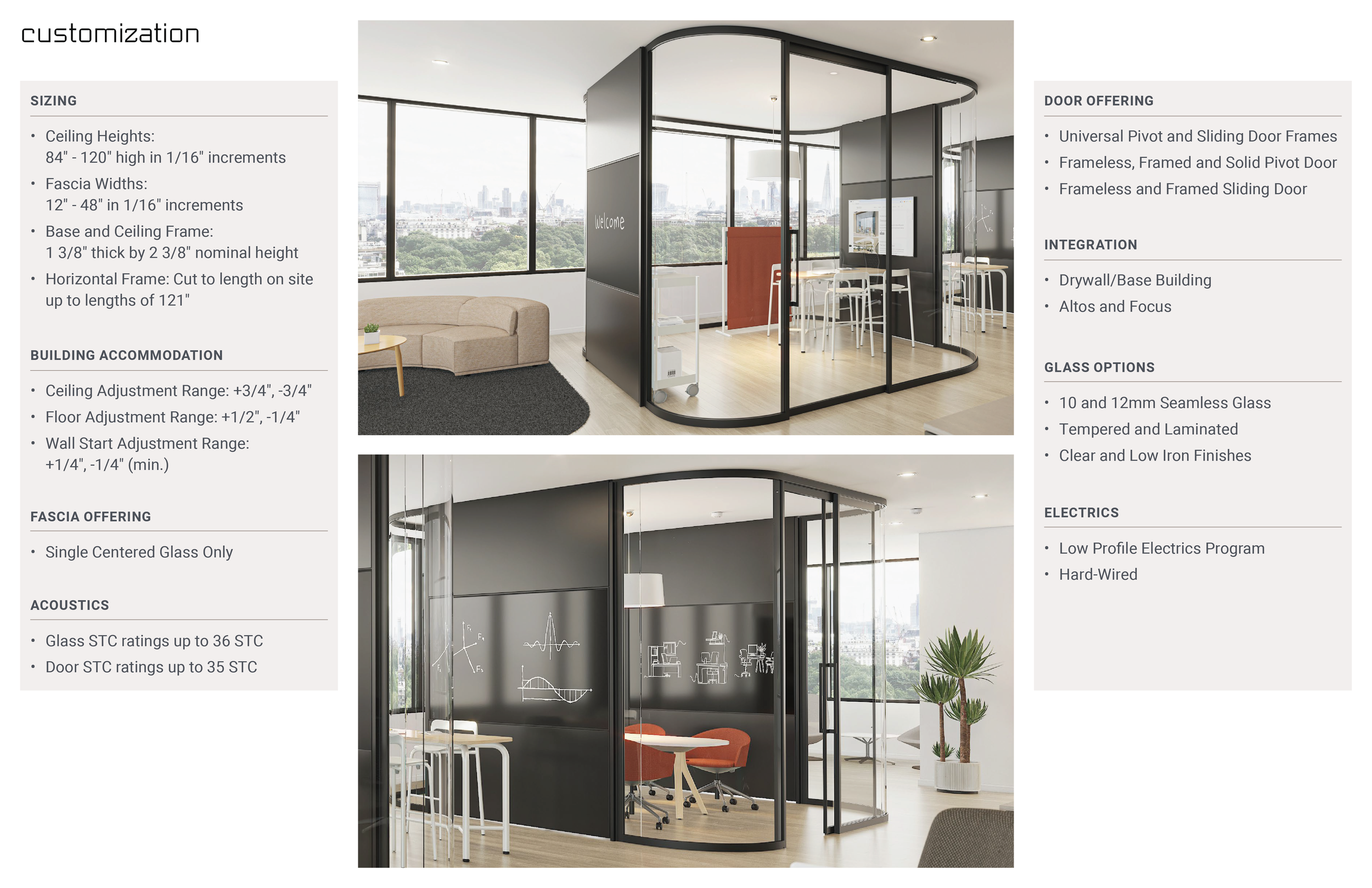

All wall and door framing elements are cut on site from common length
-
Ceiling heights from 84" - 120" high in 1 /16" increments
Fascia widths 12"- 48" in 1/16" increments
Base and ceiling frame 1-3/8" thick by 2 3/8" nominal height
Horizontal frame cut to length on site up to lengths of 121"
-

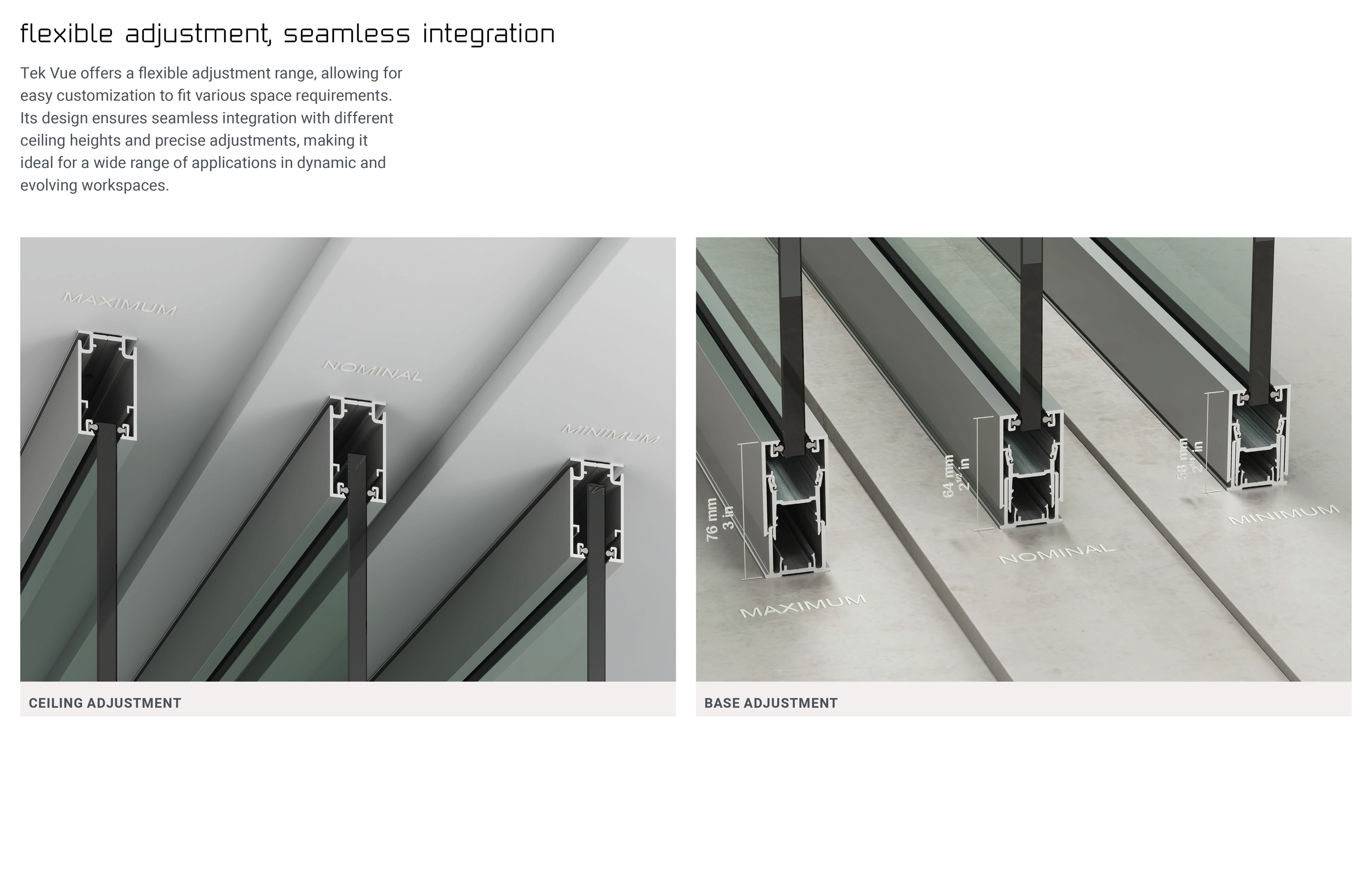

Ceiling adjustment range: + 3/4 ", - 3/4 "
Floor adjustment range: + 1/2", - 1/4 "
Wall start adjustment range: + 1/2", - 1/4" (min.)
-
Single Centered glass only
-

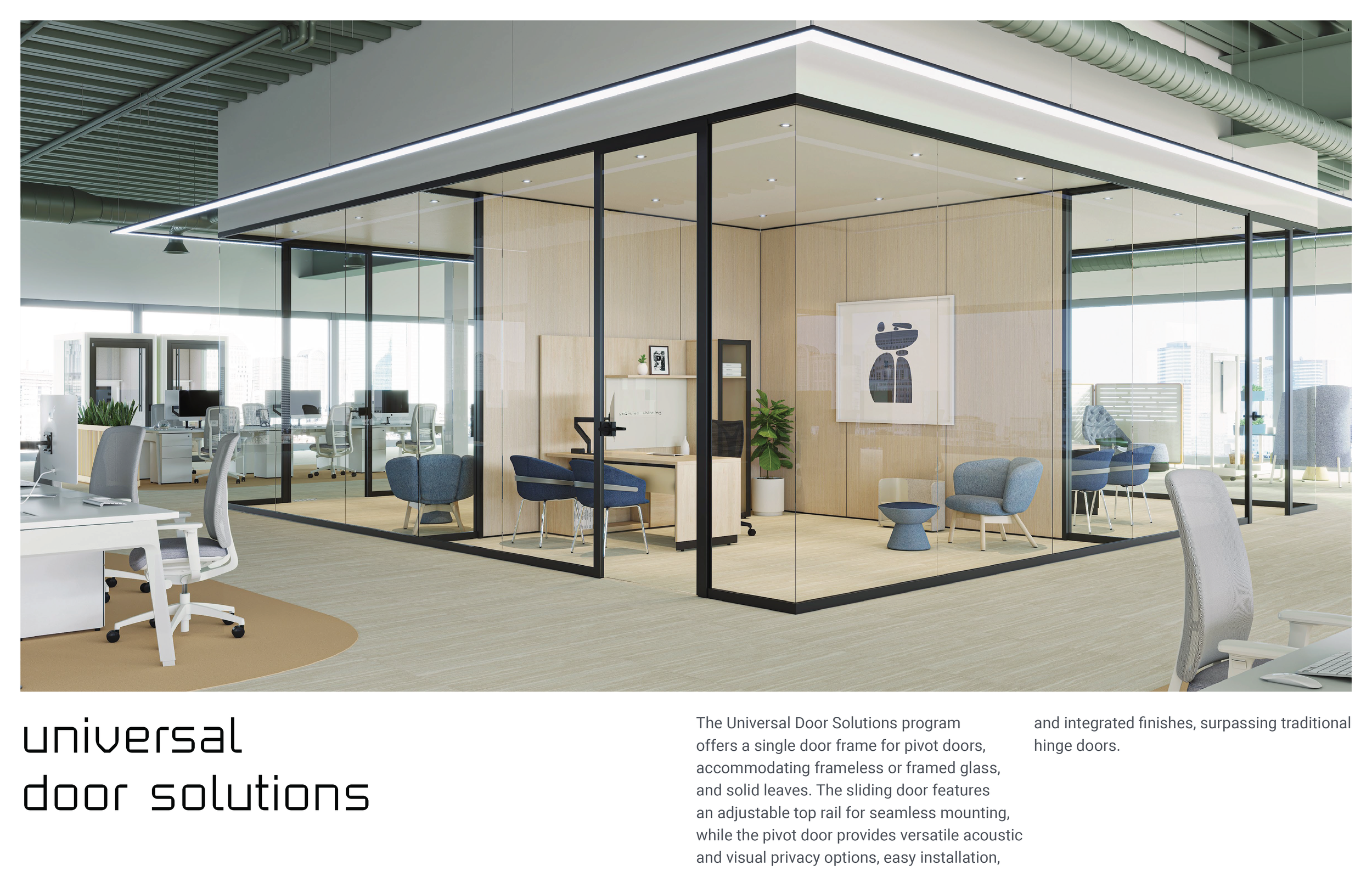

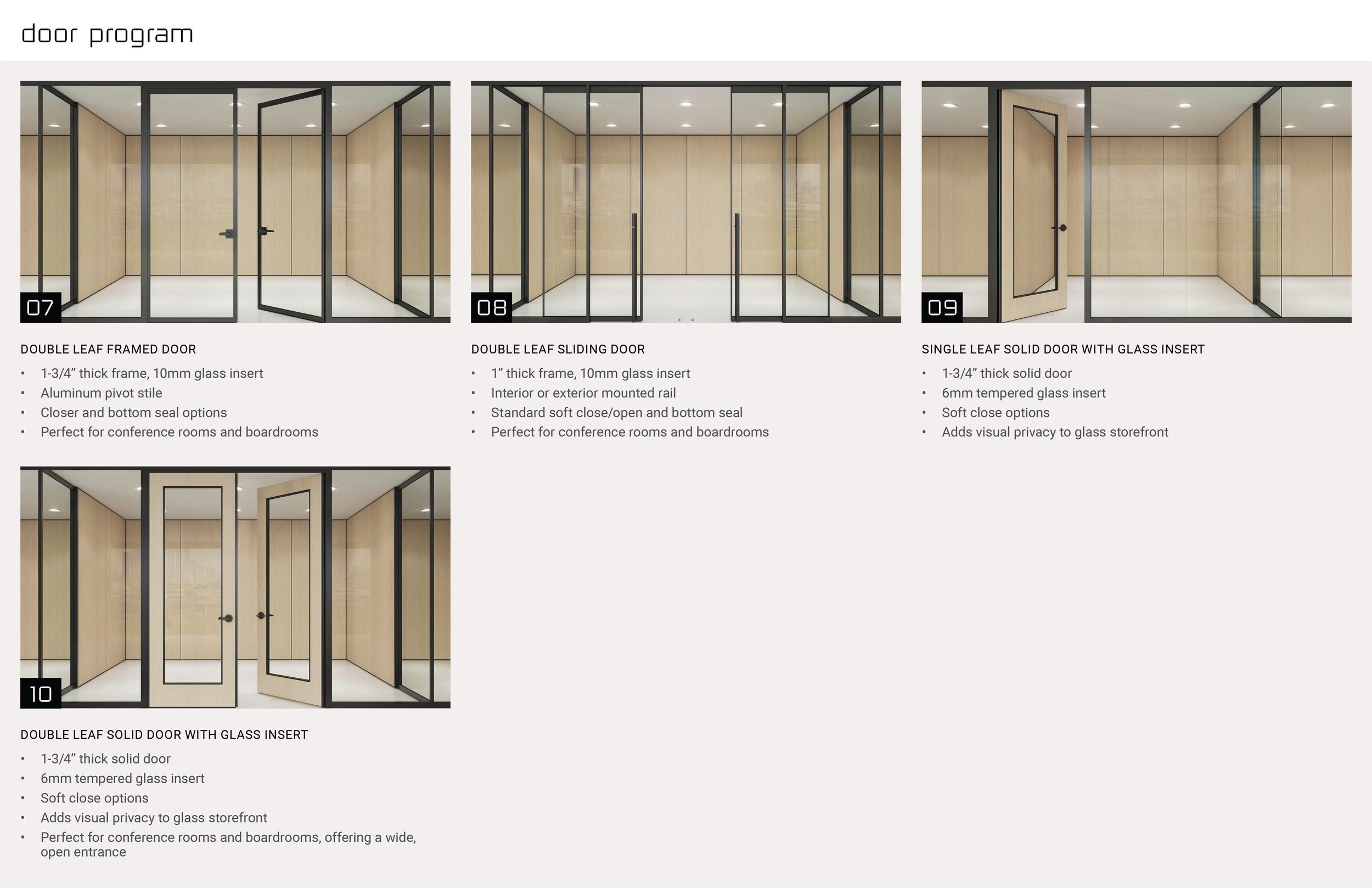

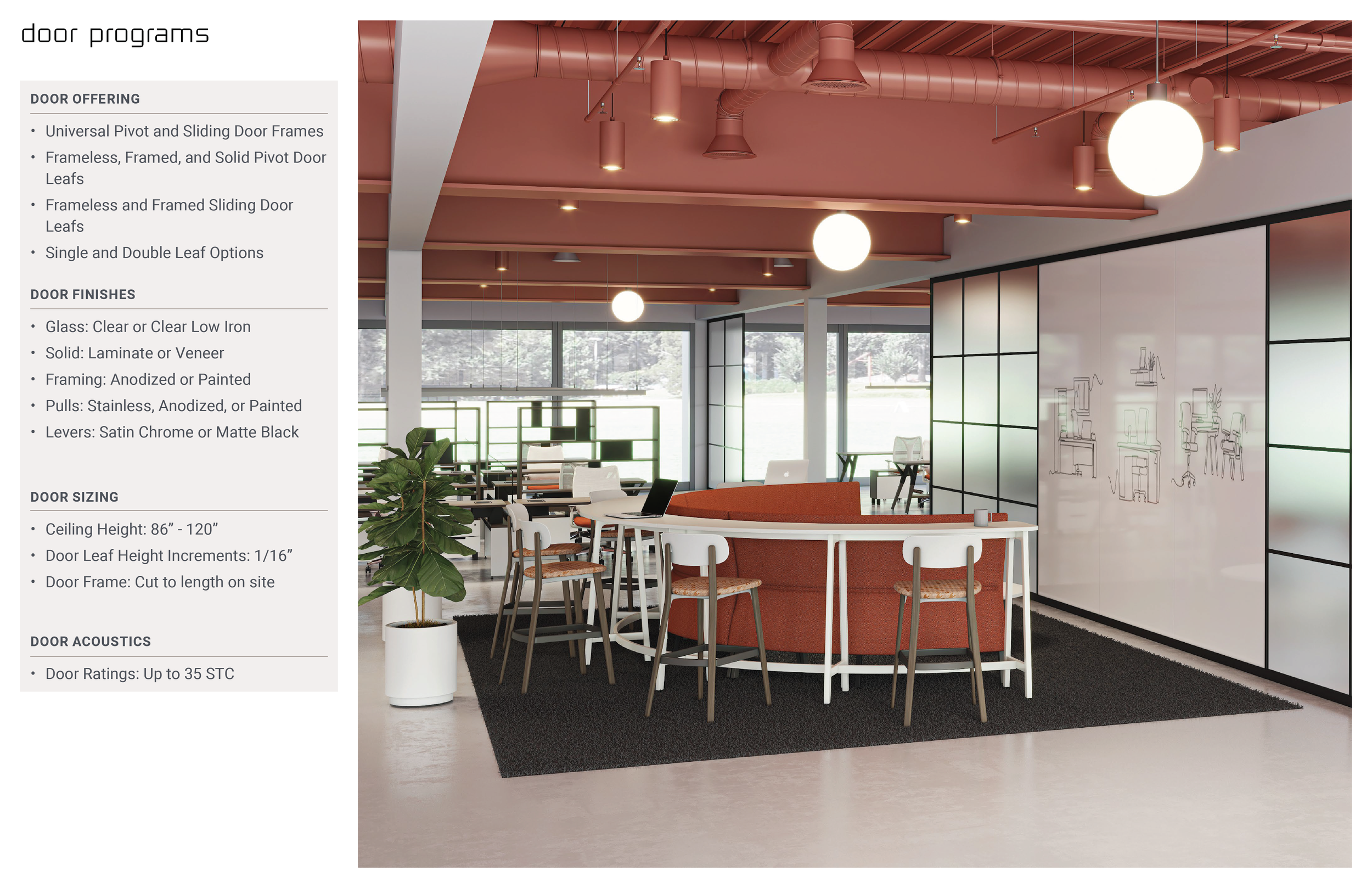

Universal Pivot and Sliding door frames

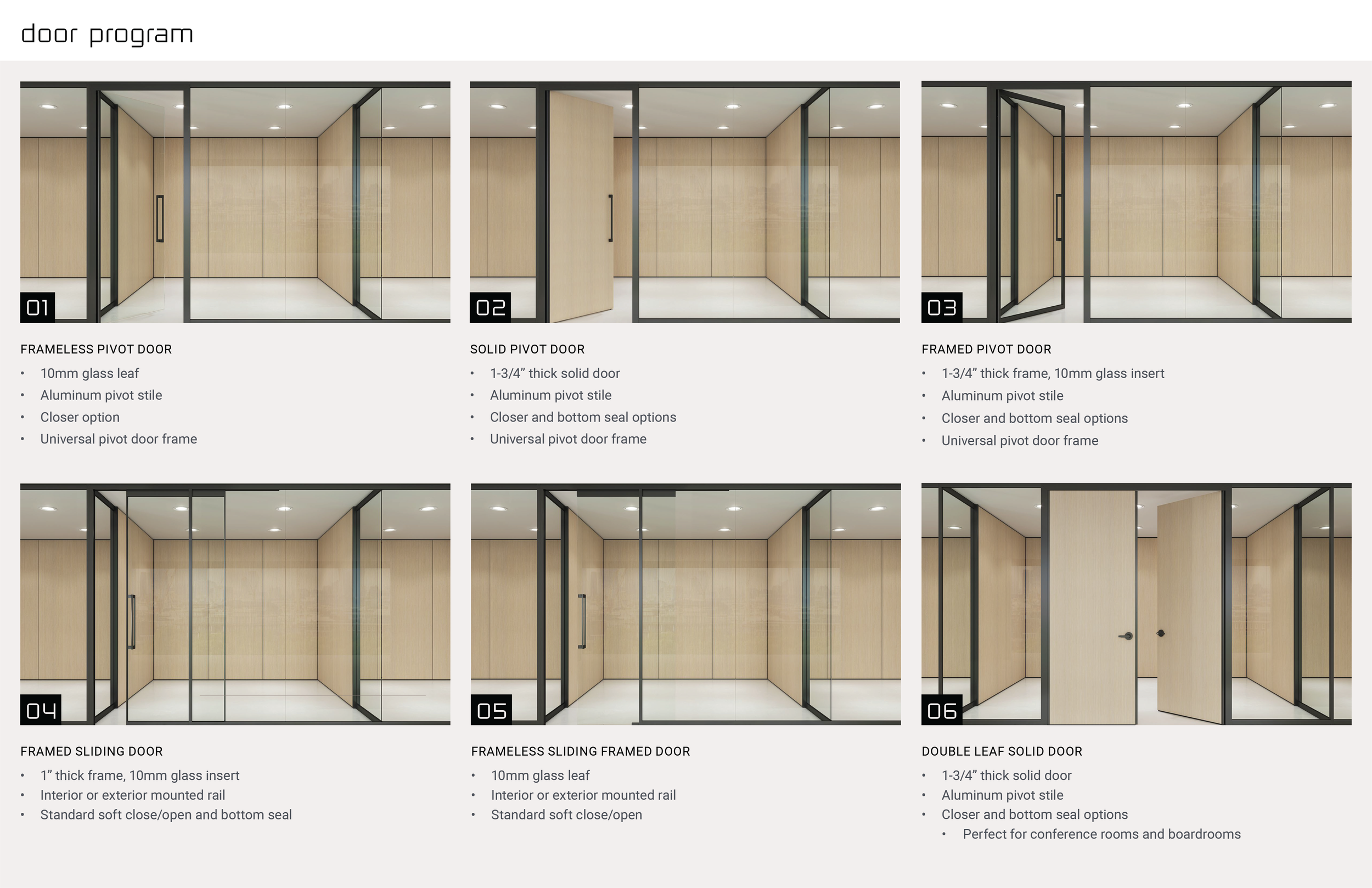

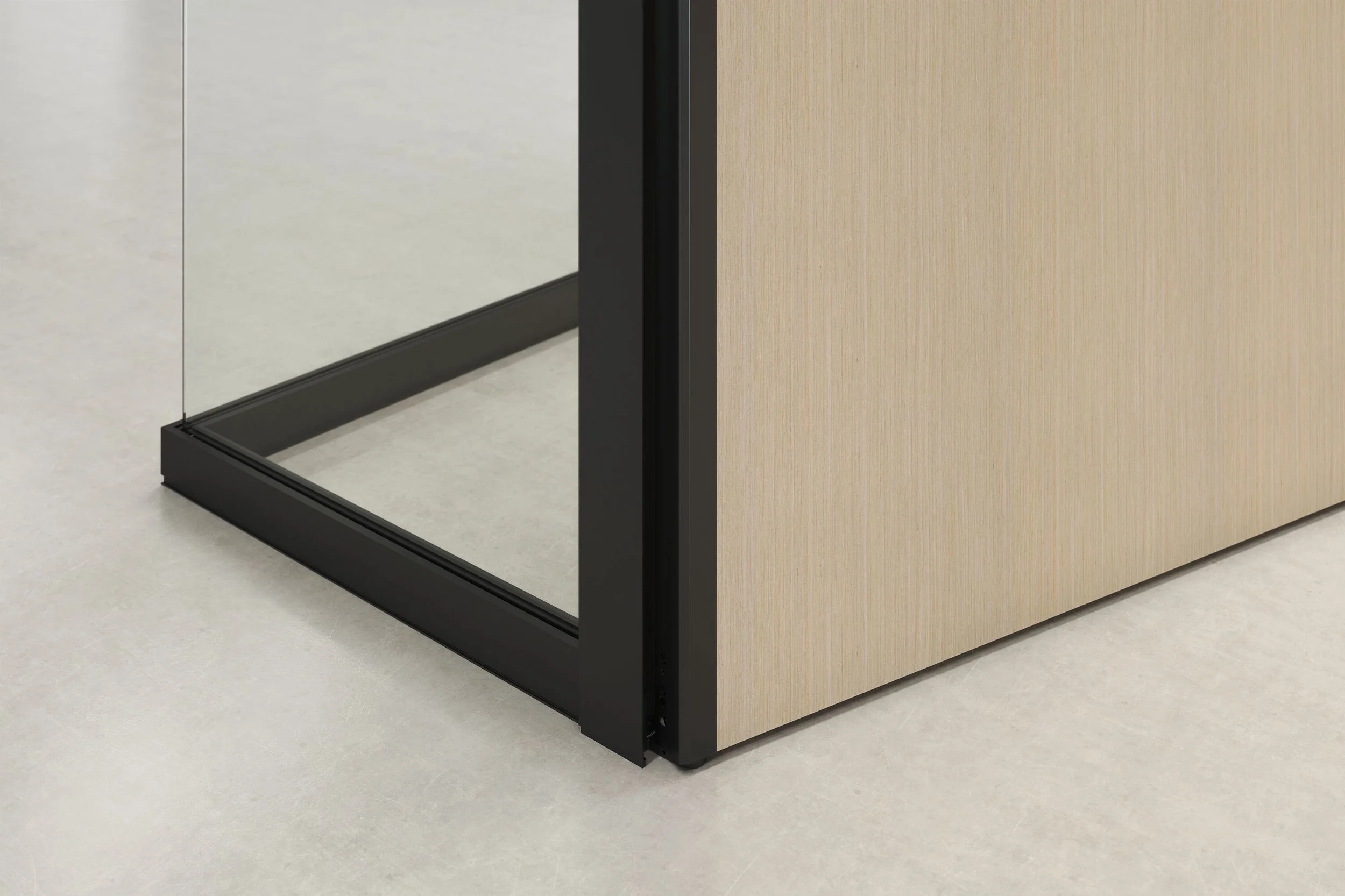

Frameless, Framed and Solid Pivot door
Frameless and Framed Sliding door
-
Glass STC ratings up to 36 STC
Door STC ratings up to 35 STC
-

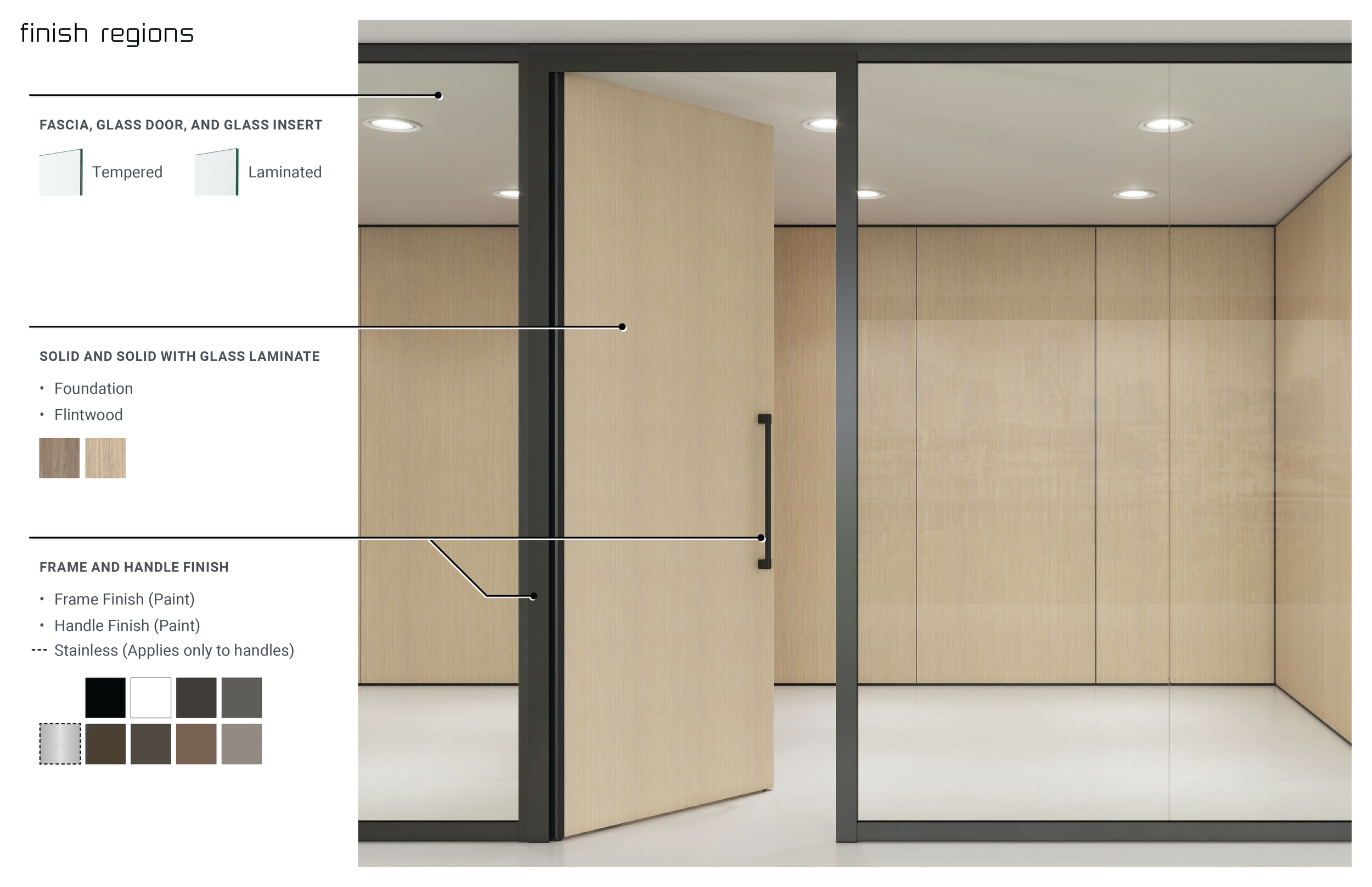

10 and 12mm seamless straight and curved glass
Tempered and Laminated
Clear and Low Iron finishes
-
Drywall/base building
-

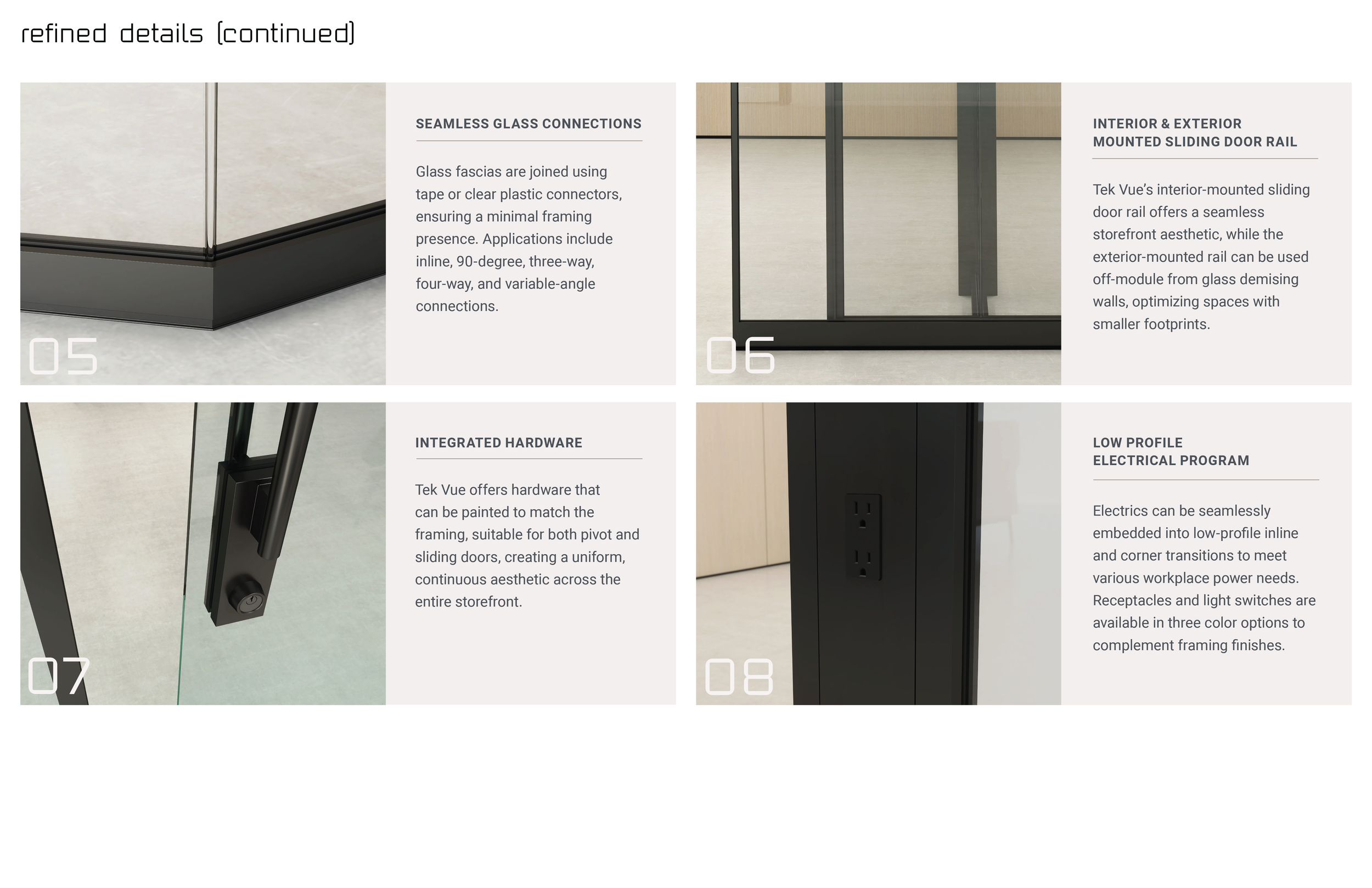

Low profile electrics program
Hard-wired
